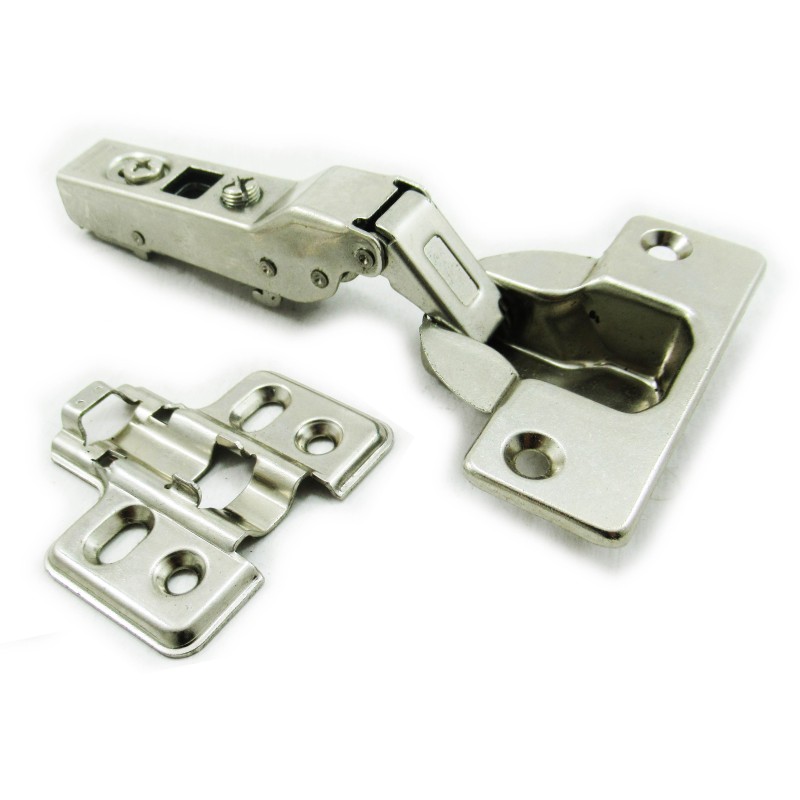

Dia 40mm 95 degree Clip-on tip-on Half overlay soft-close hydraulic Cabinet hinge
$9.99
Dia 40mm 95° tip-on?Half overlay soft-close hydraulic hinge
European Style Hydraulic Soft Close Hinge, Half Overlay
95 Degree Open,
Clip-on style, with Screws Included
All Mental Construction Satin Nickel Finish
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
One piece of European Style Hydraulic Soft-Close Hinge
Cabinet Hinge for Wooden cabinet Door
Cabinet Hinge for Wooden cabinet Door
Options as following, All comes by one piece
(Price for 1 piece)
95 Degree Open,
Clip-on style, with Screws Included
A=1-5/8inches (40mm) B=1-1/2inches (37mm) C=3/64inches (1mm)
D =10+F-E (for halfoverlay and glass door)
E\ F| 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm
0mm| 13mm 14mm 15mm 16mm 17mm 18mm 19mm 20mm
2mm| 11mm 12mm 13mm 14mm 15mm 16mm 17mm 18mm
All Mental Construction Chrome Plated Finish
Screw distance of head is 2-1/8 inches (53mm)
Diameter of cup/hole is 1-5/8 inches (40mm)
(Remark: a cabinet door needs at less 2 hinges for fitting up)
