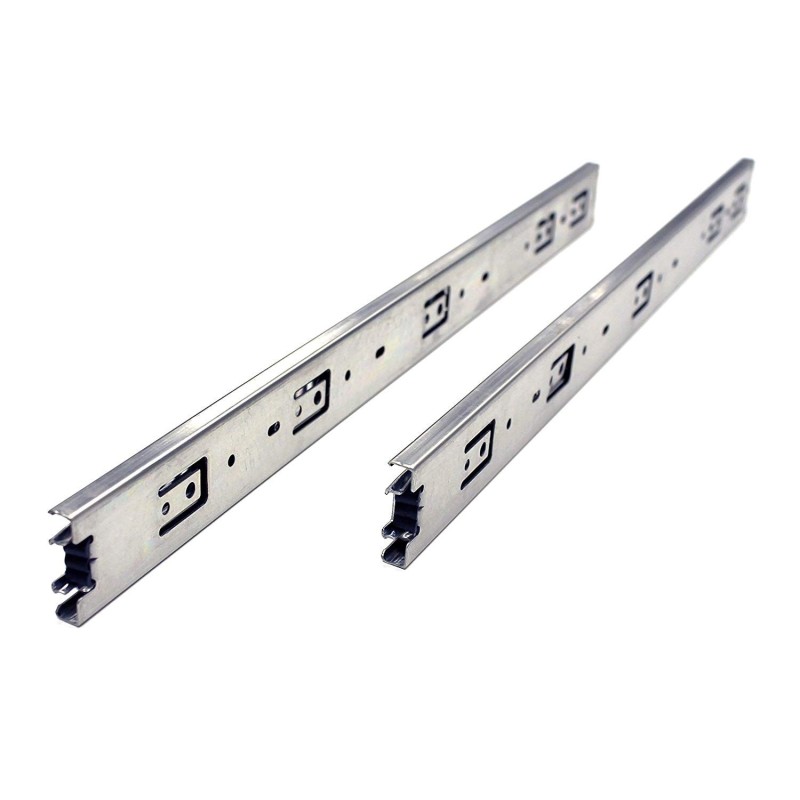

Pair of Heavy Duty Smooth 3-Folds Drawer Slides
$7.60
Full Extension Design: 3 Folds structure provides complete full extension access, allowing you to reach all contents inside even in drawers up to 24 inches deep
Smooth and Quiet Operation: High quality workmanship ball bearing mechanism ensures quiet and ultra smooth travel during opening and closing
Side Mounted Installation: Requires half inch of clearance on each side of the drawer for proper installation and optimal performance
Easy Screw-In Installation: Simple installation process using commonly available 5/8 inch #4 Flat Phillips screws, with length depending on wood thickness
Heavy Duty Load Capacity: Ball bearing system supports 100 LB capacity per pair, including all necessary installation accessories
Durable Construction: Made from 3 folds 1.2mm*1.2mm*1.5mm thick harden rolled steel with 45mm width, tested for up to 50,000 cycles by SGS
Safety Lever Connection: Built-in stop mechanism prevents drawer from being pulled out completely and falling out suddenly when fully opened
Security policy
This website never save customer info neither payment info.
Delivery policy
Order will be ready to ship within 2 business days after payment received
Return policy
Need approval before return, Please contact us first.
To determine which size of slides are good for your drawer, please measure the length of the drawer without the frame board. And if the length is not even, please choose 1 inch shorter. The length of slides can't be longer than the cabinet case depth. Material & Thickness: 3 folds 1.2mm*1.2mm*1.5mm thick Harden Rolled Steel. Our slides are made from high quality and thick steel, which makes our slides very durable for up to 50k cycles tested by SGS. 45mm Width: The 45mm (around 1.7") industrial standard width of our slides guarantees real 100 LB rated capacity. Lever Connection: Stop the drawer when fully open, protect the drawer for pulling out and falling out suddenly.
HDS4501H22in
20 Items
Data sheet
- Material
- Harden Rolled Steel
- Product Type Name
- DRAWER_SLIDE
- modelname
- HDS4501H
- numberofitems
- 2
- color
- Sliver
- modelnumber
- HDS4501H
Specific References
- UPC
- 799928951579
Comments (0)
No customer reviews for the moment.
Full Extension Design: 3 Folds structure provides complete full extension access, allowing you to reach all contents inside even in drawers up to 24 inches deep
Smooth and Quiet Operation: High quality workmanship ball bearing mechanism ensures quiet and ultra smooth travel during opening and closing
Side Mounted Installation: Requires half inch of clearance on each side of the drawer for proper installation and optimal performance
Easy Screw-In Installation: Simple installation process using commonly available 5/8 inch #4 Flat Phillips screws, with length depending on wood thickness
Heavy Duty Load Capacity: Ball bearing system supports 100 LB capacity per pair, including all necessary installation accessories
Durable Construction: Made from 3 folds 1.2mm*1.2mm*1.5mm thick harden rolled steel with 45mm width, tested for up to 50,000 cycles by SGS
Safety Lever Connection: Built-in stop mechanism prevents drawer from being pulled out completely and falling out suddenly when fully opened
