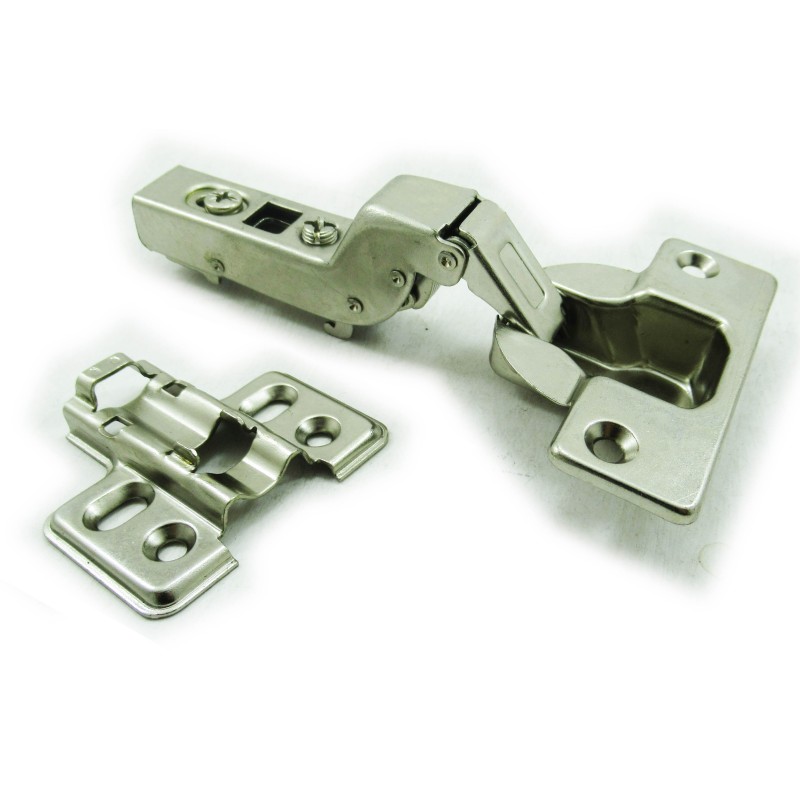

Dia 40mm 95 Degree Clip-on tip-on Insert Style soft-close hydraulic Cabinet hinge
$9.99
Dia 40mm 95° tip-on Insert Style soft-close hydraulic hinge
European Style Hydraulic Soft Close Hinge, Insert style
95 Degree Open,
Clip-on style, with Screws Included
All Mental Construction Satin Nickel Finish
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
One piece of European Style Hydraulic Soft-Close Hinge
Cabinet Hinge for Wooden cabinet Door
Cabinet Hinge for Wooden cabinet Door
Options as following, All comes by one piece
(Price for 1 piece)
95 Degree Open,
Clip-on style, with Screws Included
A=1-5/8inches (40mm) B=1-1/2inches (37mm) C=3/64inches (1mm)
D =2+E-F (for insert and glass door)
E \ F| 3mm 4mm 5mm 6mm 7mm
2mm| -1mm -2mm -3mm -4mm -5mm
4mm| 1mm 0mm -1mm -2mm -3mm
All Mental Construction Chrome Plated Finish
Screw distance of head is 2-1/8 inches (53mm)
Diameter of cup/hole is 1-5/8 inches (40mm)
(Remark: a cabinet door needs at less 2 hinges for fitting up)
